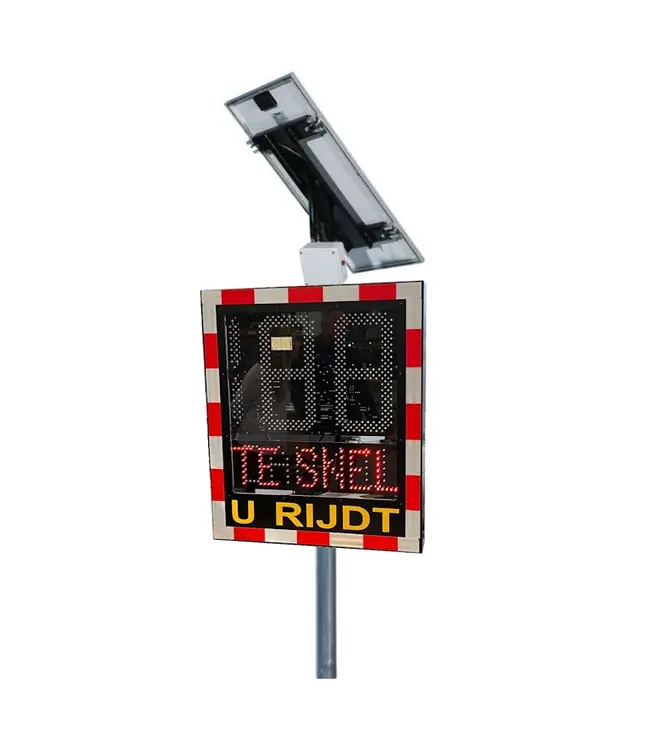

Speed Display, Traffic Radar / Vehicle Radar - Speed Measurement and Statistics - Speed LUX 230V

Radar-based technology:

This innovative device measures the speed of approaching vehicles and displays this information clearly on a bright screen.

Operation:

After setting the maximum allowed speed for a specific location, the following messages are displayed:

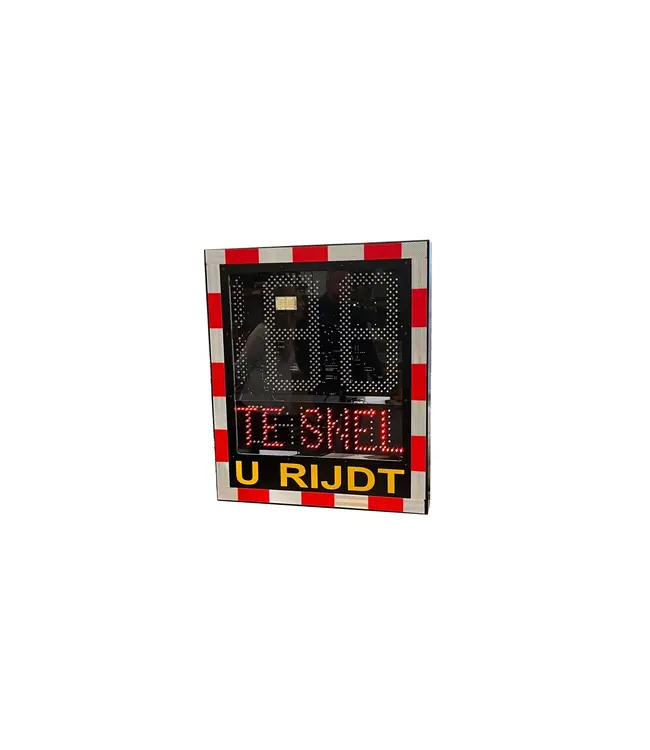

• In red: speed in km/h with the message "TOO FAST" when the speed limit is exceeded.

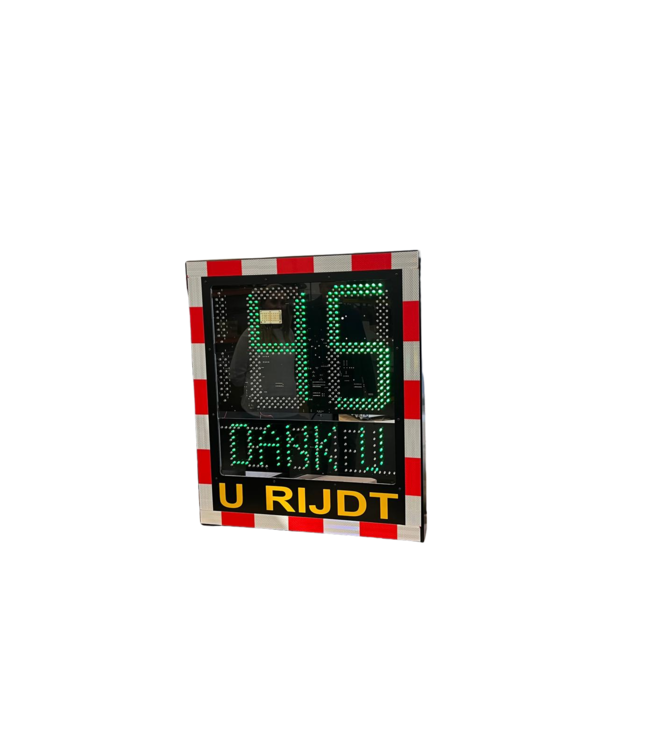

• In green: speed in km/h with the message "THANK YOU" when the driver stays below the speed limit.

Applications:

• Near schools
• Main roads
• Intersections
• Residential areas
• Other locations where additional traffic calming and speed reduction are needed

Specifications:

• Power supply: 240V AC
• Dimensions: 64 x 75 x 10 cm
• Frequency: 24.125 GHz, +/- 50 MHz (accuracy: +/- 1.5 km/h)
• Sensor range: 80-100 m (long-range sensor: 150-170 m)
• Weight: 26 kg
• Digit height: 10 cm
• Speed range: 0-199 km/h
• Red/white frame width: 40 mm
• LED display: 2.5 digits, 12.5″ LEDs in red/green (super bright, up to 100,000-hour lifespan)
• Fuses: Multi-circuit, 4 amps
• Additional power options: 12V DC battery (20 Ah) with solar panel
• Power consumption: < 0.2 A in active mode, < 1 W in standby
• Radar type: K-band, directional Doppler radar, FCC-compliant (Part 15)
• Beam width: 30-40 degrees (long-range sensor: 12-10 degrees)

Optional extensions:

• Wi-Fi module: for reading data such as recorded speeds.

In case of power failure:

The device operates on an internal battery (included in the price) supported by solar panels. The battery voltage is automatically monitored, and the device shuts down if the voltage drops below 11.5V and reactivates when it exceeds 12.5V.

Benefits of speed radars:

Speed displays improve traffic safety by raising driver awareness of their speed without penalizing them. Unlike traditional radars, these devices are not equipped with cameras for issuing fines but work preventively. Statistics show that drivers often reduce their speed when they see a speed display.

Radar speed screens – display colors:

White digits are not allowed. Typically, red digits are used for speed limit violations and green digits for compliance with speed limits.

Why choose a speed radar?

These devices significantly enhance traffic safety by reducing speed in critical areas such as:

• Entrances to towns/villages along busy roads
• Near schools and pedestrian crossings

Speed Lux – A Top-Quality Radar

Consider the Speed Lux, a renowned manufacturer of traffic safety devices. This radar measures speed with an accuracy of up to 1.5 km/h and displays the speed on a bright LED screen with a long lifespan.
